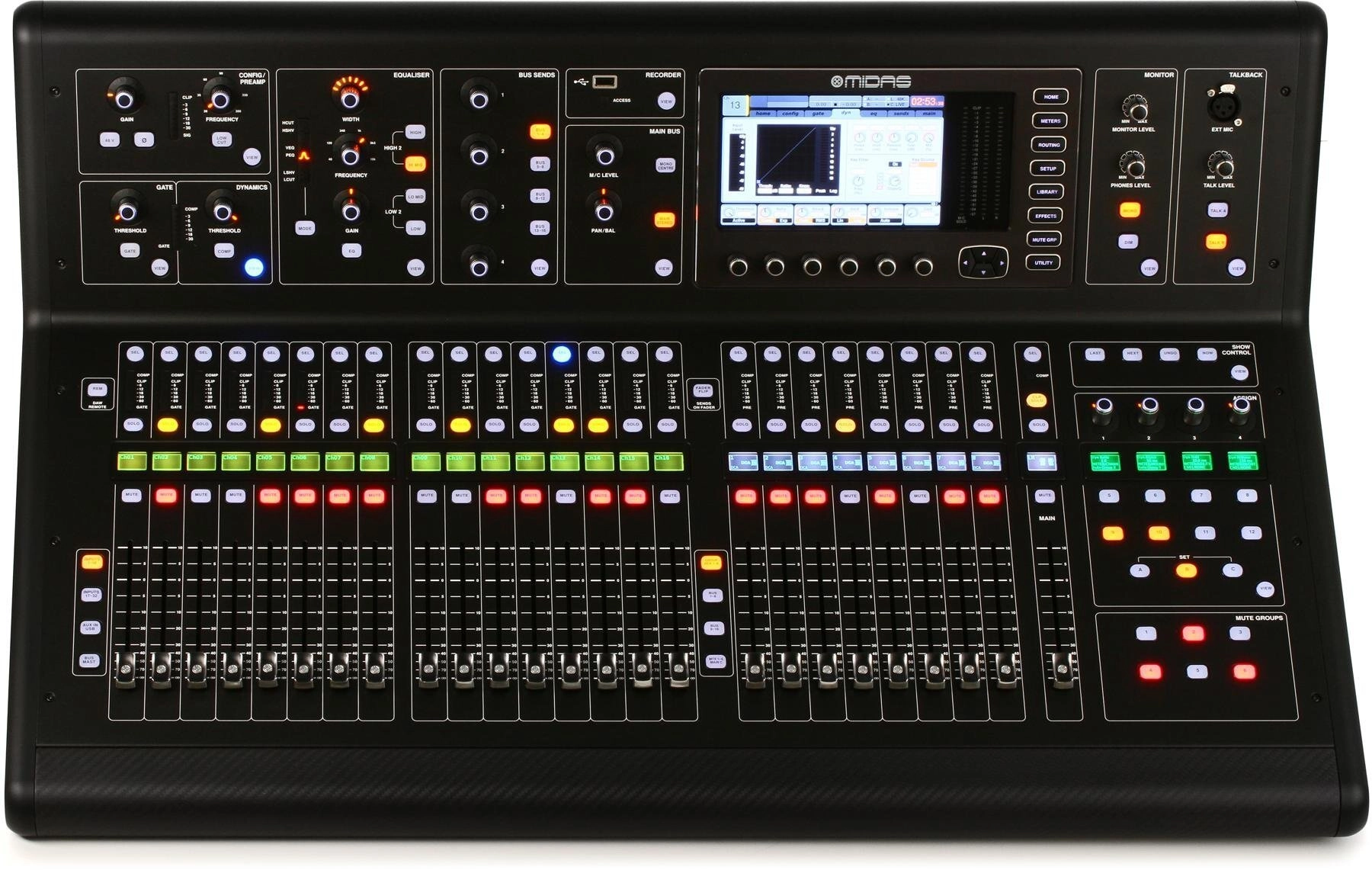

MIDAS M32 디지털 믹서

Midas M32는 라이브 공연 및 스튜디오 녹음용으로 설계된 고성능 디지털 믹싱 콘솔입니다. 뛰어난 Midas PRO 마이크 프리앰프를 탑재하여 깨끗하고 자연스러운 사운드를 제공하며, 40개 입력 채널과 25개 믹스 버스를 지원합니다. 직관적인 사용자 인터페이스와 모터 페이더, 7인치 TFT 디스플레이를 갖춰 조작이 용이하며, USB 2.0 오디오 인터페이스를 통해 32×32 채널 녹음/재생이 가능합니다. 견고한 내구성과 다양한 이펙트, 원격 제어 기능으로 전문적인 사운드 환경에 적합합니다.

사양

Processing

Input Processing Channels : 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
Output Processing Channels : 16
16aux buses, 6 matrices, main LRC : 100
Internal Effects Engines (True Stereo / Mono) : 16
Internal Show Automation (structured Cues / Snippets) : 500 / 100
Internal Total Recall Scenes (incl. Preamplifiers and Faders) : 100
Signal Processing : 40-Bit Floating Point
A/D Conversion (8-channel, 96 kHz ready) : 114 dB Dynamic Range (A-weighted*)
D/A Conversion (stereo, 96 kHz ready) : 120 dB Dynamic Range (A-weighted*)
I/O Latency (Console Input to Output) : 0.8 ms
Network Latency (Stage Box In > Console > Stage Box Out) : 1.1 ms

Connectors

MIDAS PRO Series Microphone Preamplifier (XLR) : 32
Talkback Microphone Input (XLR) : 1
RCA Inputs / Outputs : 2
XLR Outputs : 16
Monitoring Outputs (XLR / ¼” TRS Balanced) : 2
Aux Inputs/Outputs (¼” TRS Balanced) : 6
Phones Output (¼” TRS) : 2 (Stereo)
Digital AES/EBU Output (XLR) : 1
AES50 Ports (KLARK TEKNIK SuperMAC) : 2
Expansion Card Interface : 32 Channel Audio Input / Output
ULTRANET P-16 Connector (No Power Supplied) : 1
MIDI Inputs / Outputs : 1
USB Type A (Audio and Data Import / Export) : 1
USB Type B, rear panel, for remote control :1
Ethernet, RJ45, rear panel, for remote control : 1

Mic Input Characteristics

Design : MIDAS PRO Series
THD+N (0 dB gain, 0 dBu output) : <0.01% (unweighted)
THD+N (+40 dB gain, 0 dBu to +20 dBu output) : <0.03% (unweighted)
Input Impedance (Unbalanced / Balanced) : 10 kO / 10 kO
Non-Clip Maximum Input Level : +23 dBu
Phantom Power (Switchable per Input) : +48 V
Equivalent Input Noise @ +45 dB gain (150 ? source) : -125 dB (22 Hz-22 kHz, unweighted)
CMRR @ Unity Gain (Typical) : 70 dB
CMRR @ 40 dB Gain (Typical) : 90 dB

Input/Output Characteristics

Frequency Response @ 48 kHz Sample Rate : 0 dB to -1 dB (20 Hz-20 kHz)
Dynamic Range, Analogue In to Analogue Out : 106 dB (22 Hz-22 kHz, unweighted)
A/D Dynamic Range, Preamplifier and Converter (Typical) : 109 dB (22 Hz-22 kHz, unweighted)
D/A Dynamic Range, Converter and Output (Typical) : 109 dB (22 Hz-22 kHz, unweighted)
Crosstalk Rejection @ 1 kHz, Adjacent Channels : 100 dB
Output level, XLR Connectors (Nominal / Maximum) : +4 dBu / +21 dBu
Output Impedance, XLR Connectors (Unbalanced / Balanced) : 50 O / 50 O
Input impedance, TRS Connectors (Unbalanced / Balanced) : 20 kO / 40 kO
Non-Clip Maximum Input Level, TRS Connectors : +21 dBu
Output Level, TRS (Nominal / Maximum) : +4 dBu / +21 dBu
Output Impedance, TRS (Unbalanced / Balanced) : 50 O / 50 O
Phones Output Impedance / Maximum output Level : 40 O / +21 dBu (Stereo)
Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain : -85 dBu 22 Hz-22 kHz unweighted
Residual Noise Level, Out 1-16 XLR Connectors, Muted : -88 dBu 22 Hz-22 kHz unweighted
Residual Noise Level, TRS and Monitor out XLR Connector : -83 dBu 22 Hz-22 kHz unweighted

Display

Main Screen : 7″ TFT LCD, 800 x 480 Resolution, 262k Colours
Channel LCD Screen : 128 x 64 LCD with RGB Colour Backlight
Main Meter : 24 Segment (-57 dB to Clip)

Power

Switch-Mode Power Supply : Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
Power Consumption : 120 W

Physical

Standard Operating Temperature Range : 5°C – 40°C (41°F – 104°F)
Dimensions : 891 x 612 x 256 mm (35.1 x 24.1 x 10.1″)
Weight : 25 kg (55 lbs)

A-weighted figures are typically ~3 dB better

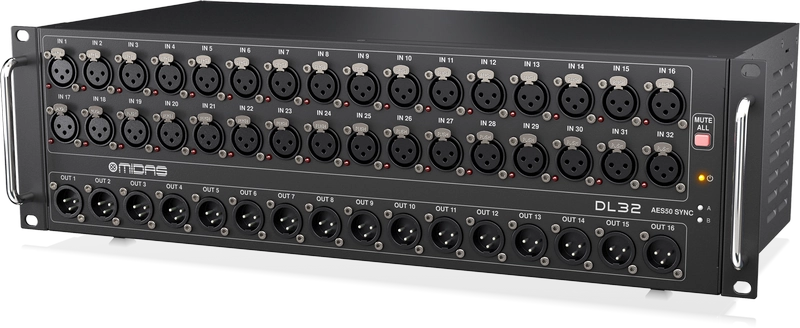

MIDAS DL32 디지털 스테이지박스

Midas DL32는 라이브 및 스튜디오용 32 입력/16 출력 디지털 스테이지 박스입니다. 32개의 Midas PRO 마이크 프리앰프를 탑재해 뛰어난 음질을 제공하며, AES50 SuperMAC 네트워킹으로 단일 CAT5e 케이블을 통해 32채널 양방향 오디오 전송이 가능합니다. 낮은 레이턴시, ULTRANET 개인 모니터링 시스템 통합, 그리고 견고한 3U 랙마운트 디자인이 특징입니다. 효율적인 오디오 라우팅과 고품질 사운드를 위한 핵심 장비입니다.

사양

Processing

A/D-D/A conversion(Cirrus Logic A/D CS5368, D/A CS4398) : 24-bit @ 44.1 / 48 kHz, 114 dB dynamic range (A-weighted)
Networked I/O latency : (stagebox in > console processing* > stagebox out) 1.1 ms

Connectors

Programmable Midas mic preamps, balanced XLR : 32
Line outputs, balanced XLR : 16
AES/EBU outputs (AES3 XLR) : 2
AES50 ports, SuperMAC networking, NEUTRIK etherCON : 2
ULTRANET output, RJ45 (no power supplied) : 1
MIDI inputs / outputs : 1/1
ADAT outputs, Toslink : 2
USB port for system updates, type B : 1

Mic Input Characteristics (Midas PRO)

Input impedance, XLR : 10 kΩ
Non clip maximum input level, XLR : +23.5 dBu
THD + noise, unity gain, 0 dBu out : < 0.01%, unweighted THD + noise, +45 dB gain, 0 dBu out < 0.03%, unweighted Phantom power, switchable per input 48 V
Equivalent input noise @ +45 dB gain, (150 Ω source) : < -126 dBu, 22 Hz – 22 kHz, unweighted
CMRR @ 1 kHz, unity gain (typical) : > 70 dB
CMRR @ 1 kHz, +45 dB gain (typical) : > 90 dB

Input/Output Characteristics

Frequency response @ 48 kHz sample rate, at any gain : 20 Hz – 20 kHz, 0 dB to -1 dB
Dynamic range, analogue mic in to analogue out : 107 dB, 22 Hz – 22 kHz, unweighted
A/D dynamic range, mic preamp to converter : 109 dB, 22 Hz – 22 kHz, unweighted
D/A dynamic range, converter and output : 110 dB, 22 Hz – 22 kHz, unweighted
Crosstalk rejection @ 1 kHz, adjacent channels : 100 dB

Output Characteristics

Output impedance, XLR : 50 Ω
Maximum output level, XLR : +21 dBu
Residual noise level, unity gain, XLR : < -86 dBu, 22 Hz – 22 kHz, unweighted
Residual noise level, muted, XLR : < -100 dBu, 22 Hz – 22 kHz, unweighted

Digital In/Out

AES50 SuperMAC networking @ 48 or 44.1 kHz, 24-bit PCM 2 x 48 channels, bidirectional
AES50 SuperMAC cable length, CAT5e shielded** up to 100 m
ULTRANET networking @ 48 or 44.1 kHz, 22-bit PCM 1 x 16 channels, unidirectional
ULTRANET cable length, CAT5 shielded up to 75 m
ADAT output @ 48 or 44.1 kHz, 24-bit PCM 2 x 8 channels, unidirectional
Toslink optical, cable length 5 m, typical
AES/EBU output @ 48 or 44.1 kHz, 24-bit PCM 2 x 2 channels, unidirectional XLR, 110 Ω balanced, cable length 5 m, typical

Power

Switch-mode autorange power supply 100-240 V (50/60 Hz)
Power consumption 55 W

Physical

Standard operating temperature 5°C to 45°C (41°F to 113°F)
Dimensions 483 x 242 x 138 mm (19 x 9.5 x 5.4″)
Weight 5.7 kg (12.5 lbs

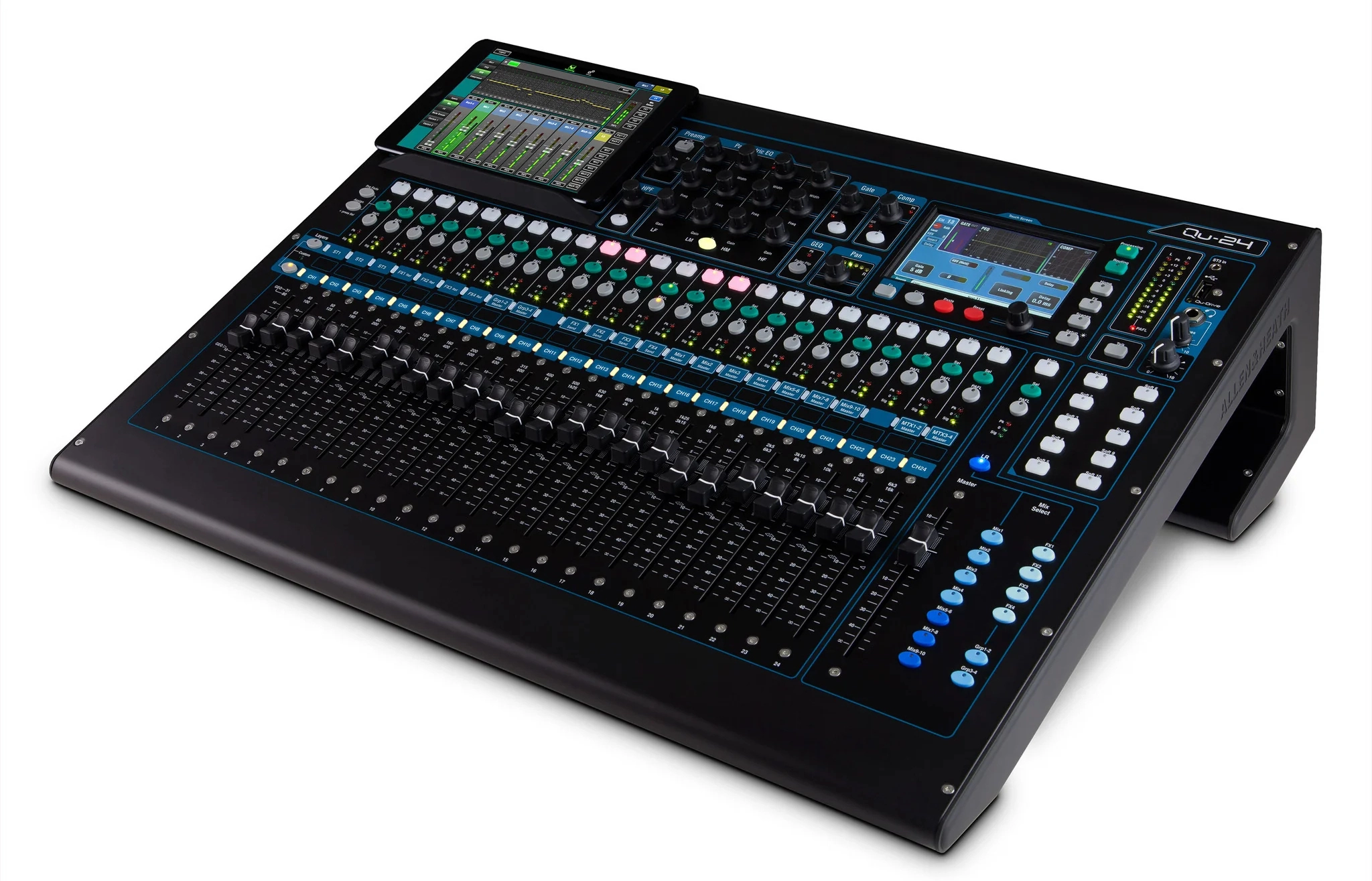

Allen&Heath QU24 디지털 믹서

Qu-24는 라이브 및 스튜디오 환경에 최적화된 디지털 믹서입니다. 24개의 모노 입력과 3개의 스테레오 입력을 지원하며, 통합 FX 엔진과 USB 오디오 인터페이스 기능을 갖추고 있습니다. 직관적인 터치스크린과 다양한 물리 제어 장치를 통해 손쉽게 조작할 수 있으며, 견고한 설계로 신뢰성을 더합니다. 믹싱, 레코딩, 모니터링 등 다양한 오디오 작업에 유연하게 활용될 수 있는 강력한 솔루션입니다.

사양

Inputs

Mic/Line Inputs

Input Sensitivity (XLR / TRS) : -60 to +5dBu / -50 to +15dBu
Analogue Gain : -5 to +60dB, 1dB steps
Maximum Input Level (XLR / TRS) : +19dBu / +29dBu
Input Impedance (XLR / TRS) : 5kΩ / >10 kΩ
THD+N, Unity gain 0dB : 0.0005% -89 dBu (20-20kHz, Direct Out@0dBu 1kHz)
THD+N, Mid gain +30dB : 0.001% -83dBu (20-20kHz, Direct Out@0dBu 1kHz)

Stereo Line Inputs

ST1, ST2 connector : Balanced, 1/4″ TRS jack, half-normalled
ST3 connector : Unbalanced, stereo 3.5mm Mini Jack
Input Sensitivity (ST1, ST2 /ST3) : Nominal +4dBu / 0dBu
Trim : +/-24dB
Maximum Input Level (ST1,ST2 / ST3) : +22dBu / +18dBu
Input Impedance : 7kΩ

Outputs

Mix1-10 and LR Out : Balanced, XLR

Group and Matrix Out

Output Impedance : <75Ω
Nominal Output : +4dBu = 0dB meter reading
Maximum Output Level : +22dBu
Residual Output Noise : -90 dBu (muted, 20-20kHz)

Stereo Alt Out & 2Trk Out : Balanced, 1/4″ TRS jack

Source (Alt Output / 2Trk Output) : Patchable / LR post-fade
Output Impedance : <75Ω
Nominal Output : +4dBu = 0dB meter reading
Maximum Output Level : +22dBu
Residual Output Noise : -90 dBu (muted, 20-20kHz)

AES Digital Output : 2 channel, 48kHz sampling rate, XLR 2.5Vpp balanced terminated 110Ω

dSNAKE

Inputs : Remote source for CH1-32, ST1, ST2, ST3
Outputs : Patchable from Mix1-10, LR, Grp1-8,MTX1-4

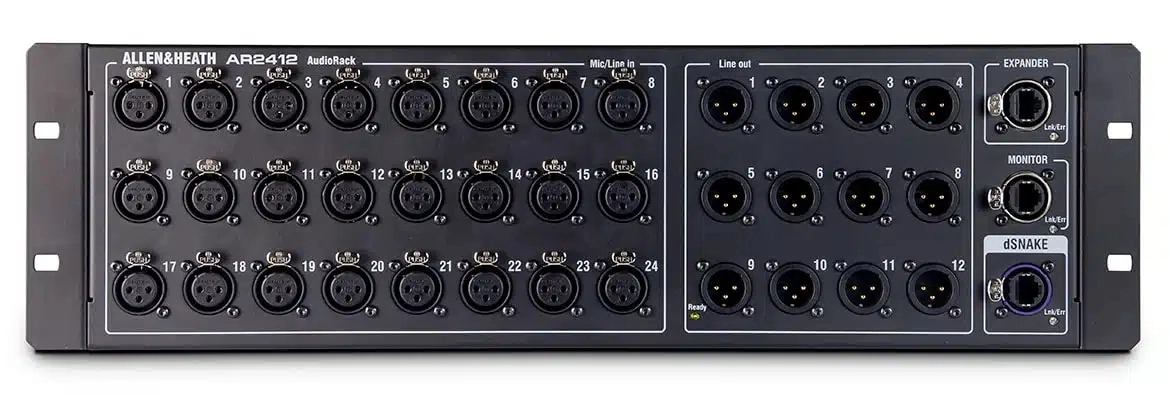

Compatible with AudioRacks AR2412, AR84, AB168 Compatible with ME personal mixing system

System

Dynamic Range : Measured balanced XLR in to XLR out, 0dB gain, 0dBu input 112 dB
Frequency Response : +0/-0.5dB 20Hz to 20kHz
Headroom : +18dB
Internal operating Level : 0dBu +18dBu = 0dBFS (+22dBu at XLR output)
Meter Calibration : 0dB meter = -18dBFS (+4dBu at XLR out)
Meter Peak indication : -3dBFS (+19dBu at XLR out), multi-point sensing
Meter Signal indication : -48dBFS (-26dBu at XLR out)
Meter Type : Fast (peak) response
Sampling Rate : 48kHz +/-100PPM
ADC, DAC : 24-bit Delta-Sigma
Latency : 1.2 ms (local XLR in to XLR out), 0.7 ms (local XLR in to AES out)
Operating Temperature Range : 0 deg C to 35 deg C (32 deg F to 95 deg F)
Mains Power : 100-240V AC, 50/60Hz
Maximum Power Consumption : 120W

Dimensions & Weights

Desk mounted Width x Depth x Height : 632 x 500 x 186 mm (24.9″ x 19.7″ x 7.4″)
Packed in shipping box 670 x 790 x 350 mm (26.4″ x 31.1″ x 13.8″)
Unpacked weight : 14 kg (31 lbs)
Packed weight : 18 kg (40 lbs)

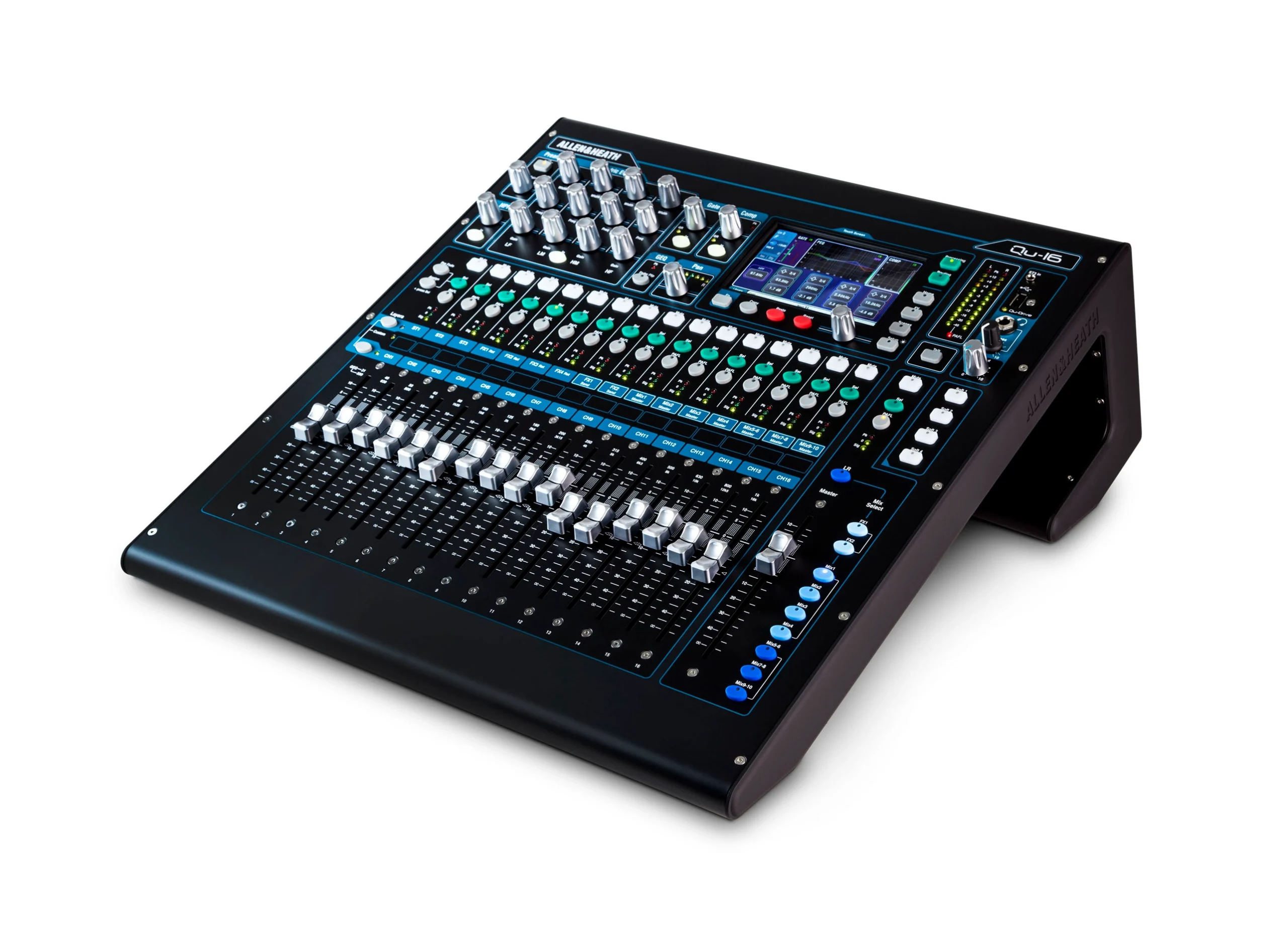

Allen&Heath QU16 디지털 믹서

.Qu-16은 라이브 및 스튜디오 환경에 최적화된 디지털 믹서입니다. 16개의 모노 입력과 3개의 스테레오 입력을 지원하며, 통합 FX 엔진과 USB 오디오 인터페이스 기능을 갖추고 있습니다. 직관적인 터치스크린과 다양한 물리 제어 장치를 통해 손쉽게 조작할 수 있으며, 견고한 설계로 신뢰성을 더합니다. 믹싱, 레코딩, 모니터링 등 다양한 오디오 작업에 유연하게 활용될 수 있는 강력한 솔루션입니다.

사양
